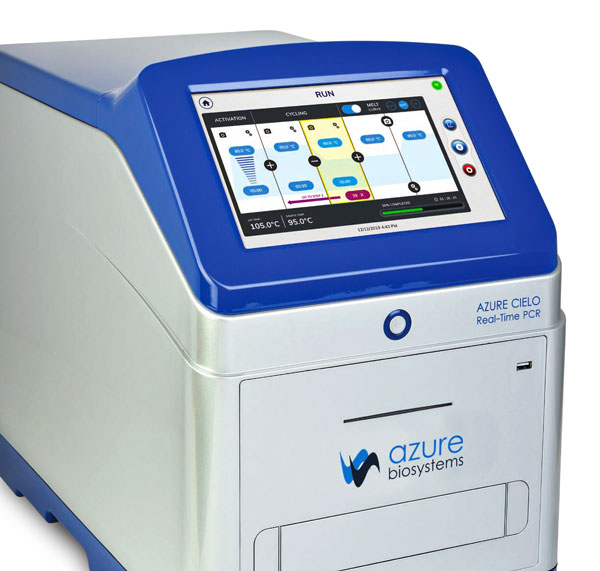

ریل تایم پی سی آر آزور (Azure Real-Time PCR System)

مشخصات ریل تایم پی سی آر آزور:

مدل: Azure Cielo™ 3

Part number :  AIQ030
Product description : 96-well Real-Time PCR instrument with 10.3” touchscreen interface, 3 dye channel filters
Sample capacity (wells) : 96
Sample type : 96-well plates & tubes and 8 or 12-well strips & single tubes
Reaction volume : 10 – 150µL
Excitation source : LED, Excitation range: 450–580nm and 610–700nm
Detection channels : 3
Multiplexing : Up to 3 targets
Thermal element : Peltier
Lid temperature : Heats up to 100 – 105°C
Reaction temperature : 4°C to 99.9°C
Max. block ramp rate : 6°C/sec
Avg. sample ramp rate : 4°C/sec
Temperature uniformity : ±0.2°C
Temperature accuracy : ±0.1°C

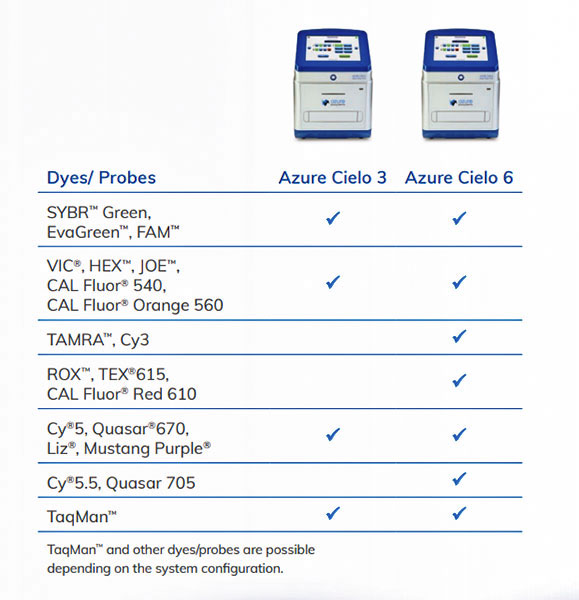

Dye compatibility : SYBR Green, EvaGreen, FAM, VIC, JOE, HEX, CAL Fluor 540, CAL Fluor Orange 560, Cy5, LIZ, Mustang Purple, Quasar 670
Custom dye/chemistry : YES
Chemistry capability : Fast/Standard
Detection sensitivity : 1 copy
Sensitivity : Detect differences as small as 2-fold in target quantities in singleplex reactions
Onboard memory : 32GB equivalent to 20,000 experiments
Connectivity : USB, Wi-Fi, Ethernet
Electrical approvals : CE Certified

مدل: Azure Cielo™ 6

Part number :  AIQ060
Product description : 96-well Real-Time PCR instrument with 10.3” touchscreen interface, 6 dye channel filters
Sample capacity (wells) : 96
Sample type : 96-well plates & tubes and 8 or 12-well strips & single tubes
Reaction volume : 10 – 150µL
Excitation source : LED, Excitation range: 450–730nm
Detection channels : 6
Multiplexing : Up to 6 targets
Thermal element : Peltier
Lid temperature : Heats up to 100 – 105°C
Reaction temperature : 4°C to 99.9°C
Max. block ramp rate : 6°C/sec
Avg. sample ramp rate : 4°C/sec
Temperature uniformity : ±0.2°C
Temperature accuracy : ±0.1°C
Dye compatibility : SYBR Green, EvaGreen, FAM, VIC, JOE, HEX, CAL Fluor 540, CAL Fluor Orange 560, ROX, TAMRA, Cy3, TEX615, Quasar 670, CAL Fluor Red 610, Cy5, LIZ, Mustang Purple, Cy5.5, Quasar 705
Custom dye/chemistry : YES
Chemistry capability : Fast/Standard
Detection sensitivity : 1 copy
Sensitivity : Detect differences as small as 2-fold in target quantities in singleplex reactions
Onboard memory : 32GB equivalent to 20,000 experiments
Connectivity : USB, Wi-Fi, Ethernet
Electrical approvals : CE Certified
